Product |
Features |
Cure time (Handling/ Full) (Secs/ Hrs.) |
Temperature (°C) |
Pack Size (g) |

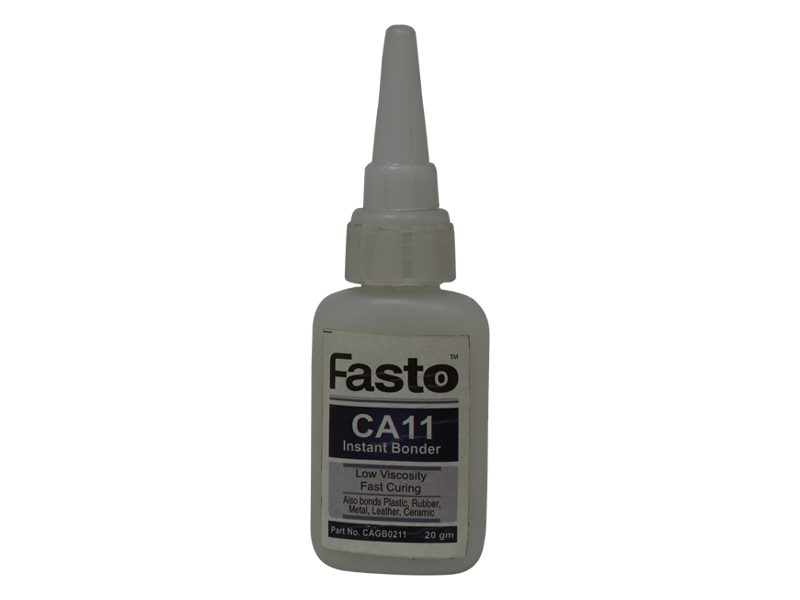

Fasto CA11 |
Multipurpose Low Viscosity |
10/ 24 |
-20 to 110 |
20 |
Fasto CA12 |
High Performance Low Viscosity |
10/ 24 |
-20 to 110 |
20 |
Fasto CA26 |
High Performance Rubber Bonding |
10/ 12 |
-20 to 110 |
20 |
Fasto CA01 |
High Performance Plastic Bonding |
10/ 12 |
-20 to 110 |
20 |
Fasto CA02 |
High Performance Low Bloom |
10/ 12 |
-40 to 80 |
20 |
Fasto CA95 |
High Performance Multi Surface |
10/ 12 |
-20 to 110 |
20 |
Fasto CA15 |
High Performance Porous Surface |
10/ 24 |
-20 to 110 |
20 |

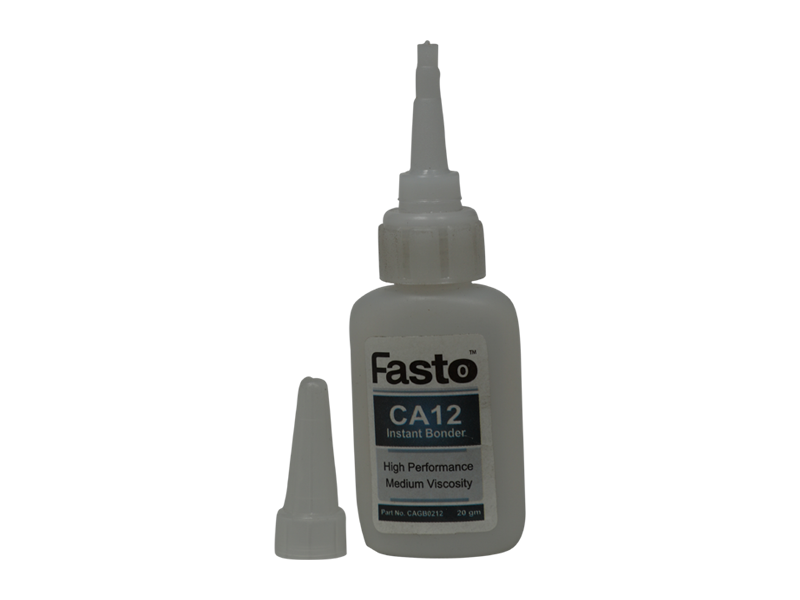

High Performance Low Viscosity
Fasto CA12 is a low-medium viscosity modified Ethyl Cyanoacrylate adhesive. Fasto CA12 is suitable for bonding a very wide range of materials including wood, various plastics, fibre, metals, rubber and few composites where medium to fast cure speed is required.
Property | Value |
Shear Strength (n/mm) | 13 |
Handling time ( secs ) | 10 |
Full cure time (hrs.) | 24 |
Viscosity (cps) | 40 |
Temp Resist (°C) | -20 to 110 |
Pack Size | 20 g |
Applications:
Automotive FRP LED Plastic & Rubber Part Assembly Pumps Tractors White Goods Wind Mill.

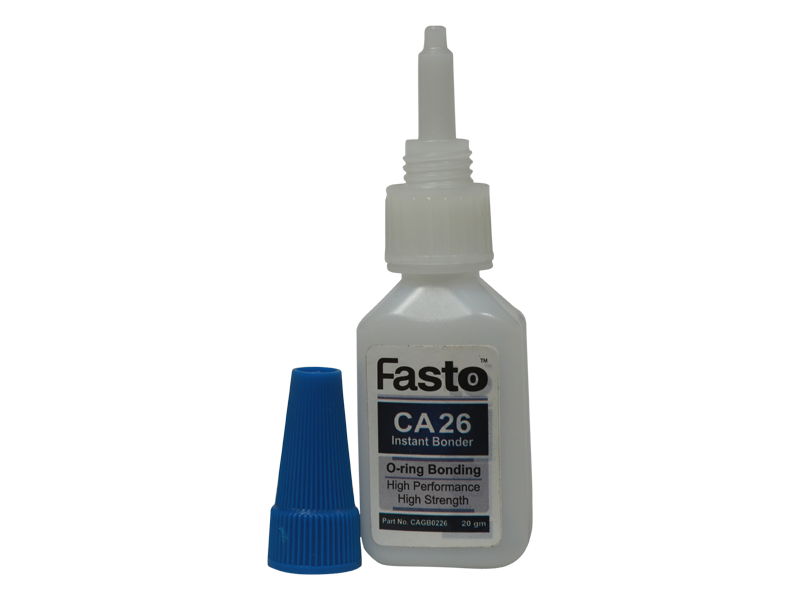

High Performance Rubber Bonding
Fasto CA26 is a low viscosity high strength fast curing specially formulated modified Ethyl Cyanoacrylate adhesive. Fasto CA26 is suitable for bonding difficult to bond substrate like paper, leather etc. Fasto CA26 is very fast curing for substrate like rubber & plastics.
Property |
Value |
Shear Strength (n/mm) |
22 |
Handling time (secs) |
10 |
Full cure time (hrs.) |
12 |
Viscosity (cps) |
100 |
Temp Resist (°C) |
-20 to 110 |
Pack Size |
20 g |
Applications:
Automotive FRP LED Plastic & Rubber Part Assembly Pumps Tractors White Goods Wind Mill.
Threadlocking products prevent self-loosening and secure any threaded fastener against vibration and shock loads. They are easy flowing liquids or semi-solid adhesives which completely fill the gaps between mating threads. When Used to assemble threaded fasteners, Fasto threadlockers permanently secure threaded assemblies and eliminate Fretting corrosion by creating a unitized assembly.
• Prevent unwanted movement, loosening, leaks, and corrosion
• Resist vibration
• Clean and easy to apply
• Can be used on all sizes of fasteners
• Seal threads – allow through-hole tapping
Product |
Features |
Cure Time (Handling/Full Strength) (mins/hrs.) |
Temperature Resistance (°C) |
Pack Size (ml) |
Fasto A122 |
High Performance Low Strength |
10 / 24 |
-50 to 150 |
50, 250 |
Fasto A143 |
High Performance Medium Strength |
15 / 24 |
-50 to 150 |
50, 250 |
Fasto A162 |
High Performance High Strength |
15 / 24 |
-50 to 150 |
50, 250 |
Fasto A170 |
High Performance Permanent Strength |
15 / 24 |
-50 to 150 |
50, 250 |
Fasto A172 |
High Viscosity High Temperature |
15 / 24 |
-50 to 200 |
50, 250 |
Fasto A177 |
High Strength Large Bolts & Studs |
10 / 12 |
-50 to 150 |
50, 250 |
Fasto A190 |
Very Low Viscosity Wicking Capability |
15 / 24 |
-50 to 150 |
50, 250 |

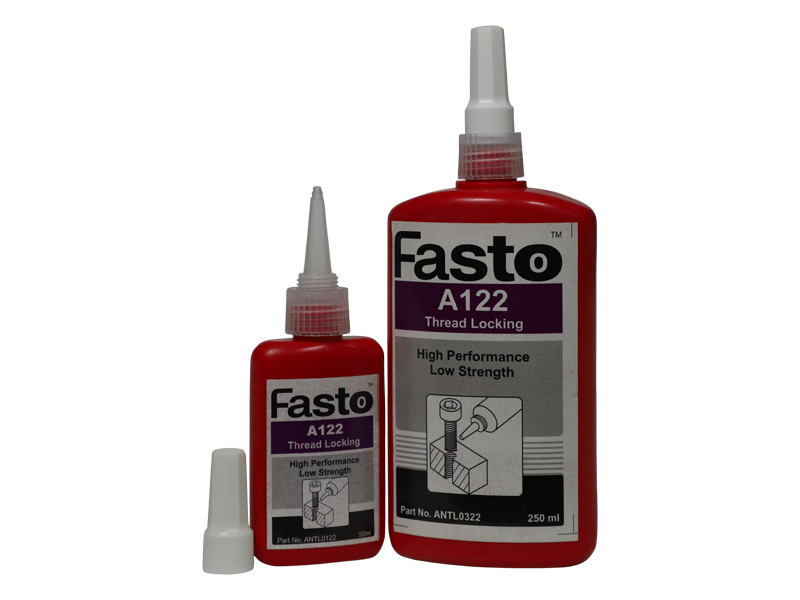

High Performance Low Strength
Fasto A122 is low-strength thread locking adhesive that can be used for adjustment screws, countersunk head screws and set screws on collars, pulleys, tool holders and controllers.
Property |
Value |
Fastener Size (inch) |
Up to 1 / 4 |
Handling time (mins.) |
10 |
Full cure time (hrs.) |
24 |
Breakaway Torque (Nm) |
13 |
Prevailing Torque (Nm) |
9 |
Temp Resist (°C) |
-50 to 150 |
Pack Size |
50 ml, 250 ml |
Applications:
Agricultural Equipment Automotive Compressors Construction Equipment Gear Box Motors Pumps Steering Assembly Transmission.
Medium Strength Oil Tolerant

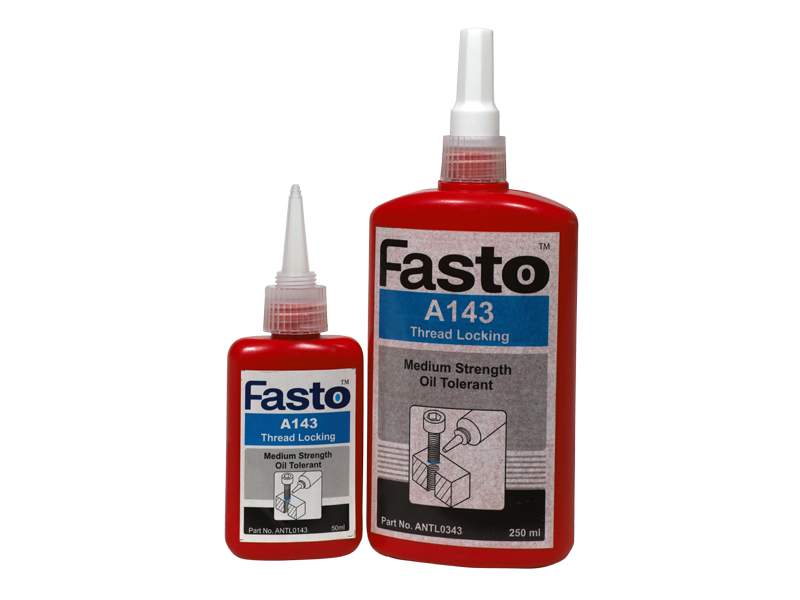

Fasto A143 is fast curing thread locking adhesive that prevents loosening of fasteners on vibrating parts such as pumps, motors, gear boxes and machine tools. These are removable with hand tools.
Property |
Value |
Fastener Size (inch) |
Up to 3 / 4 |
Handling time (mins.) |
15 |
Full cure time (hrs.) |
24 |
Breakaway Torque (Nm) |
19 |
Prevailing Torque (Nm) |
10 |
Temp Resist (°C) |
-50 to 150 |
Pack Size |
50 ml, 250 ml |
Applications:
Agricultural Equipment Automotive Compressors Construction Equipment Gear Box Motors Pumps Steering Assembly Submersible Pumps Tractors Transmission.
High Performance High Strength

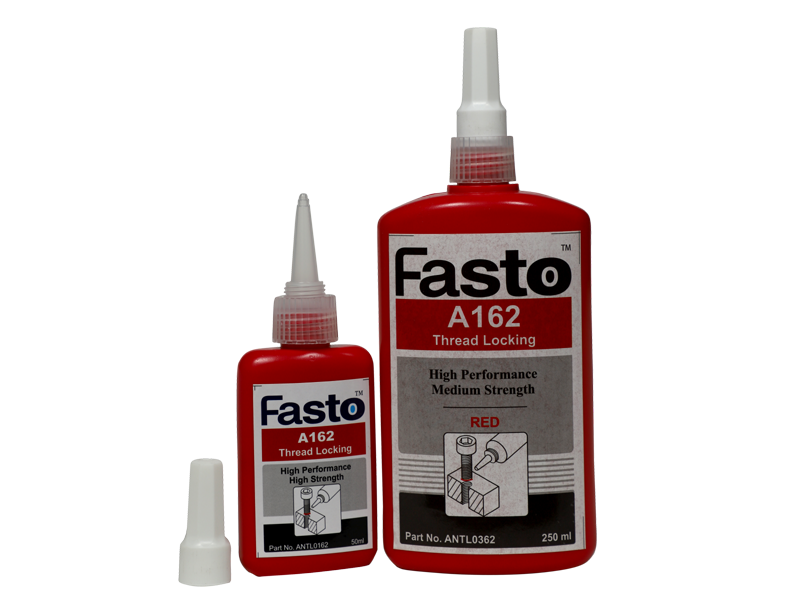

Fasto A162 is a high strength thread locking adhesive that can be applied to fasteners up to 3/4″(20 mm). Localized heating and hand tools are required to separate parts.
Property |
Value |
Fastener Size (inch) |
Up to 3 / 4 |
Handling time (mins.) |
15 |
Full cure time (hrs.) |
24 |
Breakaway Torque (Nm) |
19 |
Prevailing Torque (Nm) |
10 |
Temp Resist (°C) |
-50 to 150 |
Pack Size |
50 ml, 250 ml |
Applications:
Agricultural Equipment Automotive Compressors Construction Equipment Engines Gear Box Harvesters Motors Pumps Rotavators Shock Absorbers Steering Assembly Submersible Pumps Tractors Transmission.

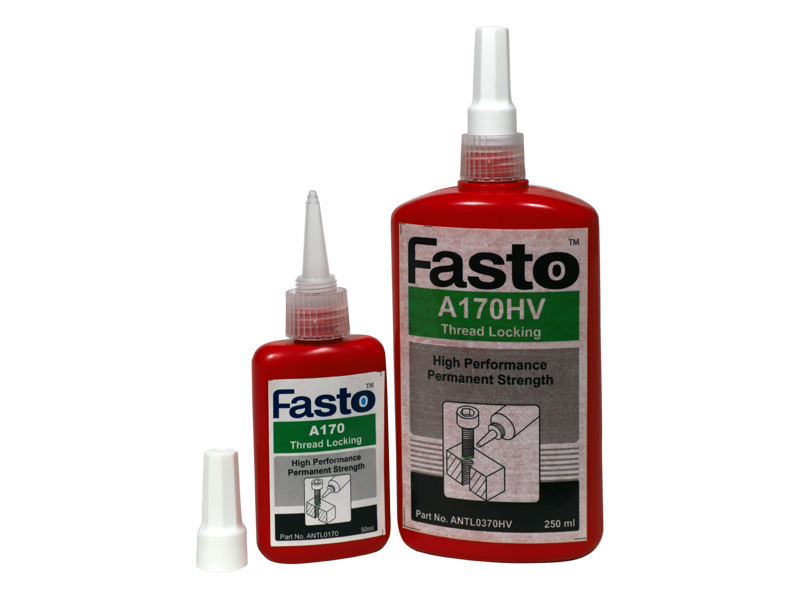

High Performance Permanent Strength
Fasto A170 is fast curing thread locking adhesive that can be applied where regular removal for maintenance is not required. It is recommended for permanently locking of studs on engine blocks, pump housings and many more industrial & automotive assemblies.
Property |
Value |
Fastener Size (inch) |
Up to 3 / 4 |
Handling time (mins.) |
15 |
Full cure time (hrs.) |
24 |
Breakaway Torque (Nm) |
29 |
Prevailing Torque (Nm) |
33 |
Temp Resist (°C) |
-50 to 150 |
Pack Size |
50 ml, 250 ml |
Applications:
Agricultural Equipment Automotive Compressors Construction Equipment Engines Gear Box Harvesters Motors Pumps Shock Absorbers Steering Assembly Transmission.
Retaining Compounds secure bearings, bushes and cylindrical parts into housings or onto shafts. They achieve maximum load transmission capability and uniform stress distribution and eliminate fretting corrosion. Applied as a liquid, they form a 100% contact between mating metal surfaces, eliminating the need for expensive replacement parts, time consuming machining or the use of mechanical methods.
• High-strength products can carry high loads
• Fill all voids to prevent corrosion and fretting
• 100% contact – load and stress are distributed evenly over the joint
Product |
Features |
Cure Time (Fixture/Full Strength) (min. / hrs.) |
Temperature Resistance (°C) |
Pack Size (ml) |
Fasto A339 |
High Performance High Strength |
8 / 12 |
-50 to 175 |
50, 250 |
Fasto A340 |
Primerless High Strength |
6 / 10 |
-50 to 175 |
50, 250 |
Fasto A341 |
Low Viscosity Medium Strength |
15 / 24 |
-50 to 150 |
50, 250 |
Fasto A348 |
High Temperature Fast Curing |
10 / 24 |
-50 to 150 |
50, 250 |
Fasto A320 |
High Viscosity High Temperature |
15 / 24 |
-50 to 230 |
50, 250 |
Fasto A301 |
Low Viscosity High Strength |
15 / 24 |
-50 to 150 |
50, 250 |
Fasto A360 |
High Strength Large Gap Fill |
10 / 24 |
-60 to 175 |
50, 250 |

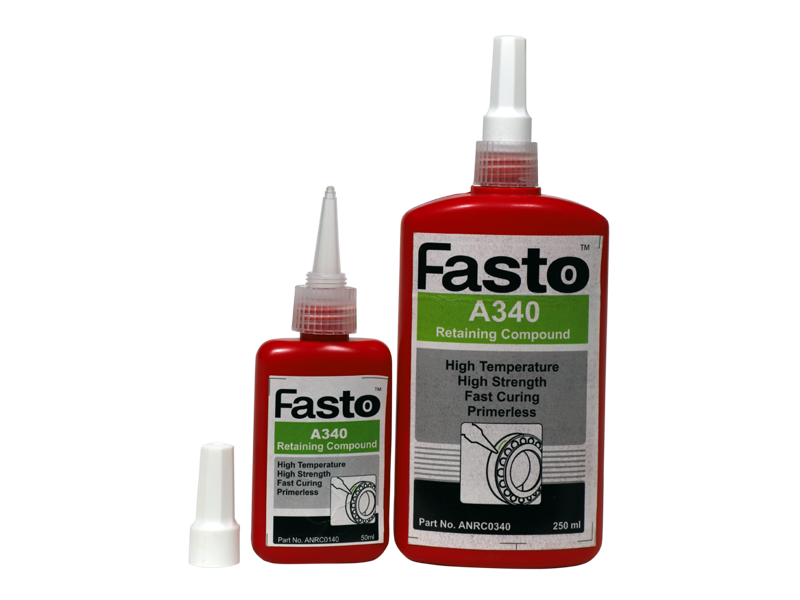

High Performance Primerless High Strength Low Viscosity
Fasto A340 is super high strength, low viscosity, primerless and superfast curing retaining compound for bonding cylindrical assemblies with clearance & slight interference fit. Typical applications include retaining of locking sleeves, bearings, pulleys, sprockets, gears & rotors onto shafts.
Property |
Value |
Gap Filling (mm) |
0.20 |
Handling time (mins) |
6 |
Full cure time (hrs.) |
10 |
Viscosity (cps) |
500 |
Temp Resist (°C) (Continuous) |
-50 to 175 |
Temp Resist (°C) (Intermittent) |
-50 to 220 |
Pack Size |
50 ml, 250 ml |
Applications:
Agricultural Equipment Automotive Compressors Construction Equipment Gear Box Motors Pumps Steering Assembly Submersible Pumps Tractors Transmission.

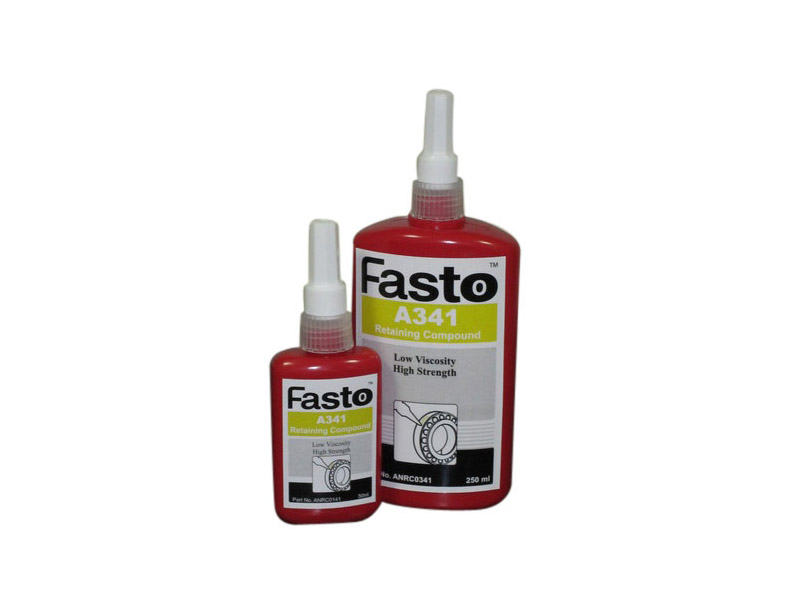

Low Viscosity Medium Strength
Fasto A341 is a medium strength retaining adhesive. Typical applications include mounting bearing in place on shafts and in housings. The controlled medium strength allows disassembly for servicing and bearing reuse. A341 prevents corrosion of assembling parts.
Property |
Value |
Gap Filling (mm) |
0.20 |
Handling time (mins) |
15 |
Full cure time (hrs.) |
24 |
Viscosity (cps) |
500 |
Temp Resist (°C) |
-50 to 150 |
Pack Size |
50 ml 250 ml |
Applications:
Agricultural Equipment Automotive Compressors Construction EquipmentGear Box Motors Pumps Steering Assembly Transmission.
High Temperature Fast Curing

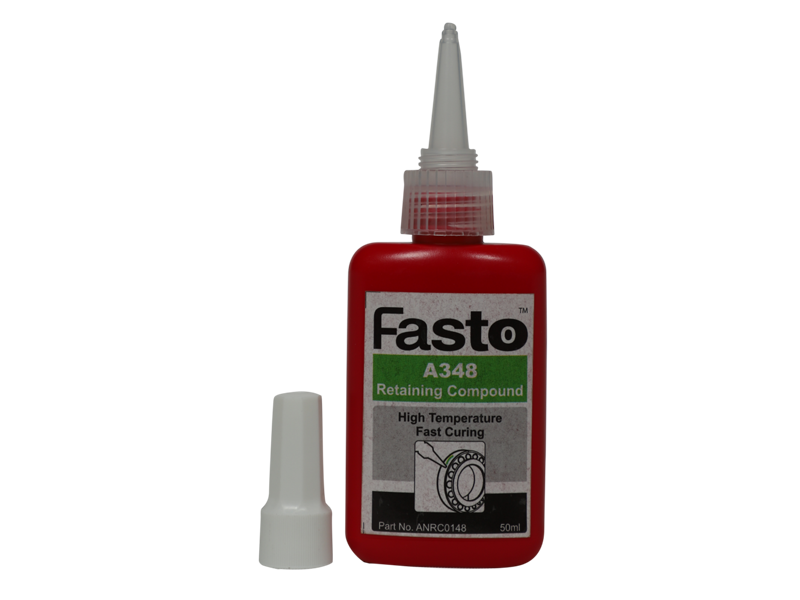

Fasto A348 is high temperature and fast curing retaining compound. A348 is designed to augment the strength of press fit assemblies. It is mainly used for high strength cylindrical assemblies like gears & rotors on shafts.
Property | Value |
Gap Filling (mm) | 0.2 |
Handling time (mins) | 10 |
Full cure time (hrs.) | 24 |
Viscosity (cps) | 2500 |
Temp Resist (°C) (Continuous) | -50 to 150 |
Temp Resist (°C) (Intermittent) | -50 to 175 |
Pack Size | 50 ml, 250 ml |
Applications:
Agricultural Equipment Automotive Compressors Construction Equipment Gear Box Motors Pumps Steering Assembly Transmission.

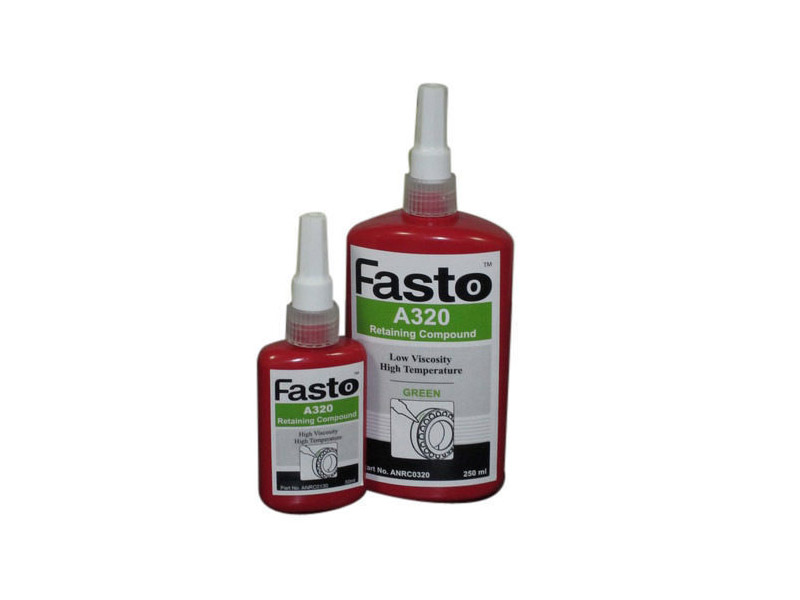

High Viscosity High Temperature
Fasto A320 is suitable for high strength and high temperature retaining compound. It applications that require large gap filling. Fasto A320 is designed to augment the strength of slip fit assemblies and for use on loose-fitting or worn parts, where larger gap fill is required.
Property |
Value |
Gap Filling (mm) |
0.40 |
Handling time (mins) |
15 |
Full cure time (hrs.) |
24 |
Viscosity (cps) |
7500 / 20000 (thixotropic) |
Temp Resist (°C) |
-50 to 230 |
Pack Size |
50 ml 250 ml |
Applications:
Agricultural Equipment Automotive Compressors Construction Equipment Gear Box Motors Pumps Steering Assembly Transmission.
UV cure adhesives are used in the production of glassware, glass furniture, acrylic glass, for the optical industry and medical technology field. Fasto UV adhesives are preferred by manufacturers for their high transparency and exceptional stability even in difficult environmental conditions such as humidity and sunlight.
• Fast, Consistent performance to speed production and throughput for a wide Assortment of applications.
• Sealing and Bonding, Providing Secure Joints.
• Clear Formulations provide aesthetically acceptance appearances.
• Wide section of available viscosities, from wicking-grade to large gap-filling materials.
Product |
Features |
Cure Time (Handling/Full) (secs/ hrs.) |
Temperature Resistance (°C) |
Pack Size (g) |
Fasto UV92 |
Very High Strength Very Low Viscosity |
< 15/ 24 |
-60 to 120 |
50, 250 |
Fasto UV98E |
Multipurpose Very Low Viscosity |
< 15 / 24 |
-60 to 120 |
50, 250 |
Fasto UV104 |
Very High Strength Low Viscosity |
< 10 / 24 |
-60 to 120 |
50, 250 |
Fasto UV52 |
High Strength Medium High Viscosity |
< 15 / 24 |
-60 to 120 |
50, 250 |
Fasto UV103 |
High Strength High Temperature |
< 10 / 24 |
-60 to 150 |
50, 250 |
Fasto UVM21 |
High Strength Plastic Bonding |
< 15 / 24 |
-60 to 120 |
50, 250 |

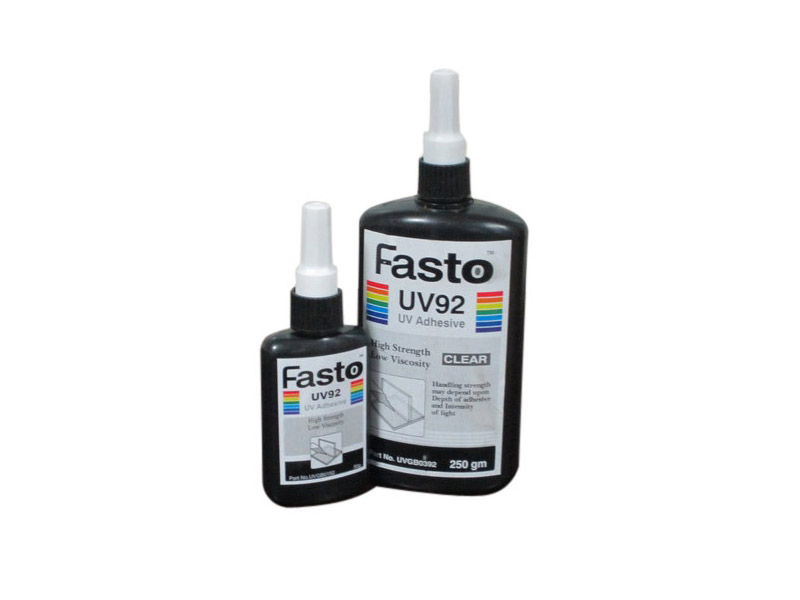

Very High Strength Very Low Viscosity
Fasto UV92 is a clear high performance, very high strength and very low viscosity UV adhesive. It wicks between parts to be bonded. It is suitable for bonding decorative and structural glass.
Property |
Value |
Gap Filling (mm) |
0.40 |
Handling time (mins) |
15 |
Full cure time (hrs.) |
24 |
Viscosity (cps) |
7500 / 20000 (thixotropic) |
Temp Resist (°C) |
-50 to 230 |
Pack Size |
50 ml 250 ml |
Applications:
Glass Furnitures & Articles.
Multipurpose Vey Low Viscosity

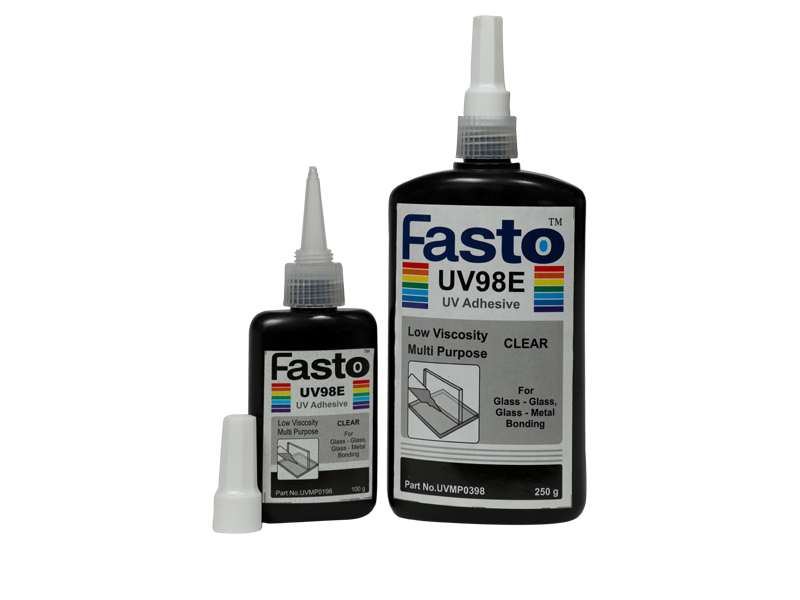

Fasto UV98E is a multipurpose, medium strength and very low viscosity UV adhesive. It is suitable for bonding decorative glass.
Property |
Value |
Shear Strength (n/mm ) |
16 |
Handling time (mins.) |
< 15 seconds |
Full cure time (hrs.) |
24 |
Viscosity (cps) |
55 |
Temp Resist (°C) |
-60 to 120 |
Pack Size |
50 g, 250 g |
Applications:
Glass Furnitures & Articles.

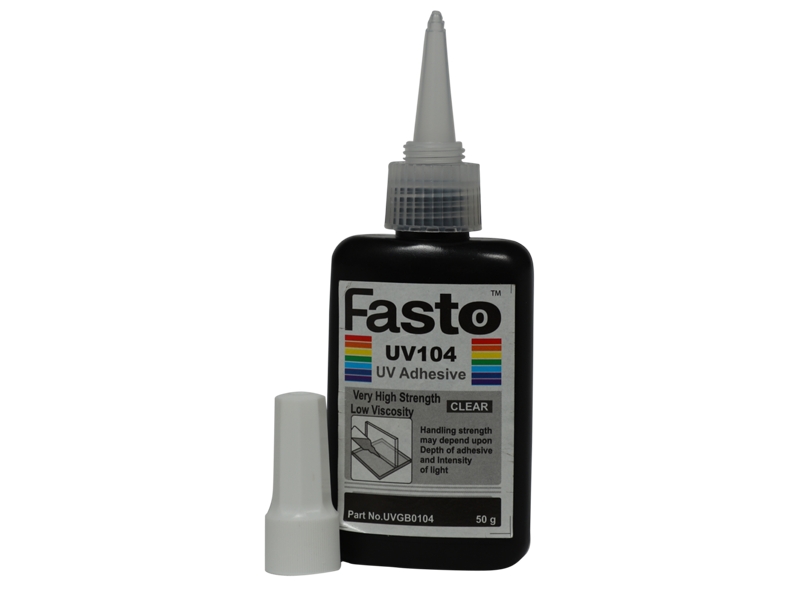

Very High Strength Low Viscosity
Fasto UV104 is high performance very high strength low – medium viscosity UV adhesive. It is suitable for bonding glass to glass and glass to metal. It is suitable for edge-to-edge and face-to-face bonding. UV104 is weather resistance.
Property |
Value |
Shear Strength (n/mm ) |
34 |
Handling time (mins.) |
< 10 seconds |
Full cure time (hrs.) |
24 |
Viscosity (cps) |
800 |
Temp Resist (°C) |
-60 to 120 |
Pack Size |
50 g, 250 g |
Applications:
Glass Furnitures & Articles.

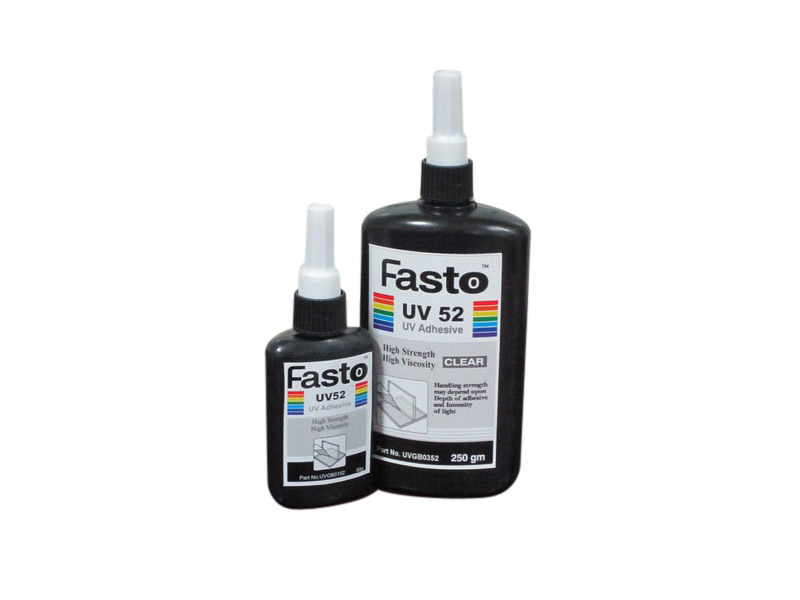

High Strength Medium High Viscosity
Fasto UV52 is high performance very high strength and medium viscosity UV adhesive. It is suitable for bonding structural glass, decorative glass and metal to glass.
Property |
Value |
Shear Strength (n/mm ) |
34 |
Handling time (mins.) |
< 10 seconds |
Full cure time (hrs.) |
24 |
Viscosity (cps) |
800 |
Temp Resist (°C) |
-60 to 120 |
Pack Size |
50 g, 250 g |
Applications:
Glass Furnitures & Articles.
Wear and corrosion are common causes of failure in industrial equipment. Protecting these assets offers a significant cost savings. Fasto Coatings offer superior protection for new and worn equipment in a variety of applications. Extending service life and increasing efficiency through reduced friction are just two examples of the benefits of using protective coatings to safeguard your assets.
• Cost savings performance on various substrates. It's most important
• Improved safety.
• Minimal down time
• Epoxies can be drilled and tapped after cure the integrity of the repair.
• Available in varying viscosities and knead able form as temporary fixes, providing proven savings for processes
• Available in colours to match varying metals applications.
Product |
Features |
Cure Time (Handling/Full) (secs/ hrs.) |
Temperature Resistance (°C) |
Pack Size (g) |
Fasto UV92 |
Very High Strength Very Low Viscosity |
< 15/ 24 |
-60 to 120 |
50, 250 |
Fasto UV98E |
Multipurpose Very Low Viscosity |
< 15 / 24 |
-60 to 120 |
50, 250 |
Fasto UV104 |
Very High Strength Low Viscosity |
< 10 / 24 |
-60 to 120 |
50, 250 |
Fasto UV52 |
High Strength Medium High Viscosity |
< 15 / 24 |
-60 to 120 |
50, 250 |
Fasto UV103 |
High Strength High Temperature |
< 10 / 24 |
-60 to 150 |
50, 250 |
Fasto UVM21 |
High Strength Plastic Bonding |
< 15 / 24 |
-60 to 120 |
50, 250 |
High Gloss High Chemical Resistance
Fasto 1400 is a high (HP ChRC Coating) performance, high build, smooth, fast curing two component, chemical resistance epoxy based coating system. Fasto 1400 is suitable for lining metal & concrete surfaces which are under severe chemical attacks. Fasto 1400 protects end covers, chutes, piping, pumps, foundation, steel structures, tanks, valves, etc from severe corrosion and erosion.
Compressive Strength psi |
Tensile Strength psi |
Tack Free Time / Full Cure Time (min./hrs) |
Temp. Resist. (*c) |
Pack Size* |
---|---|---|---|---|
13778 |
8267 ( Flexural Strength) |
25 min / 24 hr |
-24 to +124 (dry service temperature) |
5 kg 10 kg |
Applications:
MRO
High Gloss High Wear Resistance
Fasto 1414 (HP Brushable Ceramic Coating), is a smooth, two-component, ceramic filled epoxy system that provides a glossy, low friction coating designed to protect metal surfaces. Fasto 1414 (HP Brushable Ceramic Coating) is suitable for lining heat exchangers and condensers, lining chutes and tanks, resurfacing rudders and pintel housings and repairing cooling pump impellers, butterfly valves and cavitated pumps against abrasion, turbulence and cavitations.
Compressive Strength psi |
Tensile Strength psi |
Tack Free Time / Full Cure Time (min./hrs) |
Temp. Resist. (*c) |
Pack Size* |
---|---|---|---|---|
11370 |
4672 |
25 min / 24 hr |
-24 to +230 (dry service temperature) |
1 kg 5 kg 10 kg |
Applications:
MRO
High Performance Machineable
Fasto 1441 (HP Metal Compound) is a high strength, two-component, machineable polymer based metal compound that provides a reliable and corrosion resistant repairing of various equipment. It is suitable for repairing & metal filling at heat exchangers tube sheet, valve seat, flanges, pump casings, shafts, key ways, weld joints, castings, etc.
Compressive Strength psi |
Tensile Strength psi |
Tack Free Time / Full Cure Time (min./hrs) |
Temp. Resist. (*c) |
Pack Size* |
---|---|---|---|---|
14,390 |
4,780 |
30 min / 24 hr |
-24 to +150 (dry service temperature) |
1 kg 5 kg |
Applications:
MRO
Silicone-based sealants are much more than just sophisticated glue. They are a vital component of thousands of products, determining the way materials can be used together. Silicones are revolutionizing the technology of adhesion, opening advanced design possibilities. From labels to airplanes, floor tiles to skyscrapers, silicone-based sealants and adhesive systems make our lives safer, more comfortable and more rewarding. Silicones are extraordinarily versatile.
• Flexibility
• Resistance to temperature extremes
• Outstanding performance
• Oil & Chemical Resistance
• Water & Weather Resistance
• Inertness
Product |
Features |
Tack Free Time/ Full Cure Time (mins/ hrs.) |
Temperature Resistance (°C) |
Pack Size (ml) |
Fasto S950 |
Multipurpose Highly Flexible |
30 / 24 |
-24 to 165 |
280 |
Fasto S960 |
High performance High Temperature Red |
20/ 24 |
-50 to 260 |
300 |
Fasto S970 |
Neutral Cure Highly Flexible |
35/ 24 |
-24 to 175 |
280 |
Fasto S980 |
High performance High Strength |
20/ 24 |
-24 to 230 |
300 |
Fasto S982 |
High performance Low Odour |
30/ 24 |
-24 to 230 |
300 |
Fasto S987 |
High performance Blue High Oil Tolerant |
30/ 24 |
-24 to 260 |
300 |
Fasto S990 |
High Performance Heavy Duty |
30/ 24 |
-50 to 230 |
300 |
Fasto P260 |
High Performance Primerless Glass Glazing |
60/ 24 |
-30 to 90 |
600 |
Fasto MS50 |
UV resistant Surface Insensitive |
60/ 24 |
-30 to 90 |
600 |

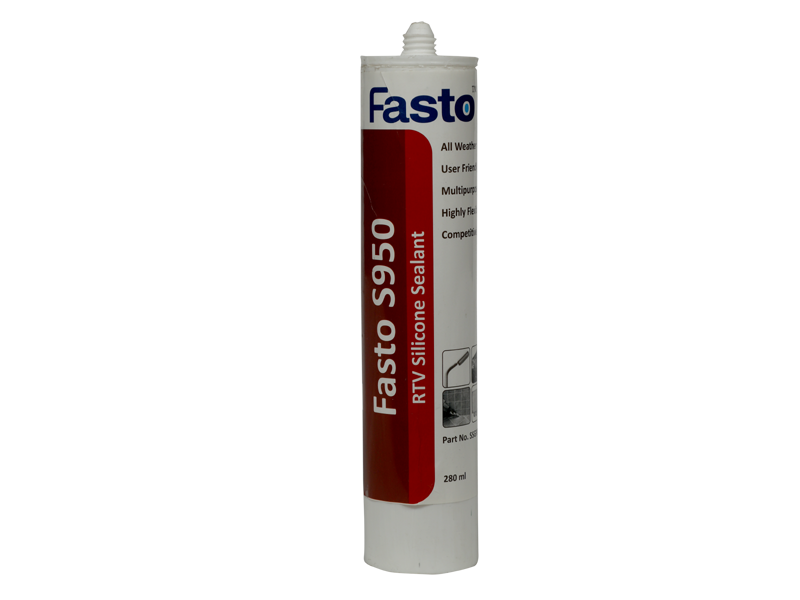

Multi Purpose Highly Flexible
Fasto S950 is a one part, all weather, highly flexible, acetoxy, economical grade, multipurpose RTV Silicone sealant. Fasto S950 is suitable for bonding and sealing gear box flanges, air conditioning ducts, bus body, street lights, signing boards, solar panels and many more electrical & mechanical equipment and machines.
Property |
Value |
Ultimate Tensile Strength (n/mm) |
1.7 |
Hardness Shore (n/mm) |
19 |
Handling time (mins) |
30 |
Full cure time (hrs.) |
24 |
Temp Resist (°C) |
-24 to 165 |
Pack Size |
100 ml, 300 ml, 600 ml, 20 ltr, 200 ltr |
Applications:
Doors & Windows

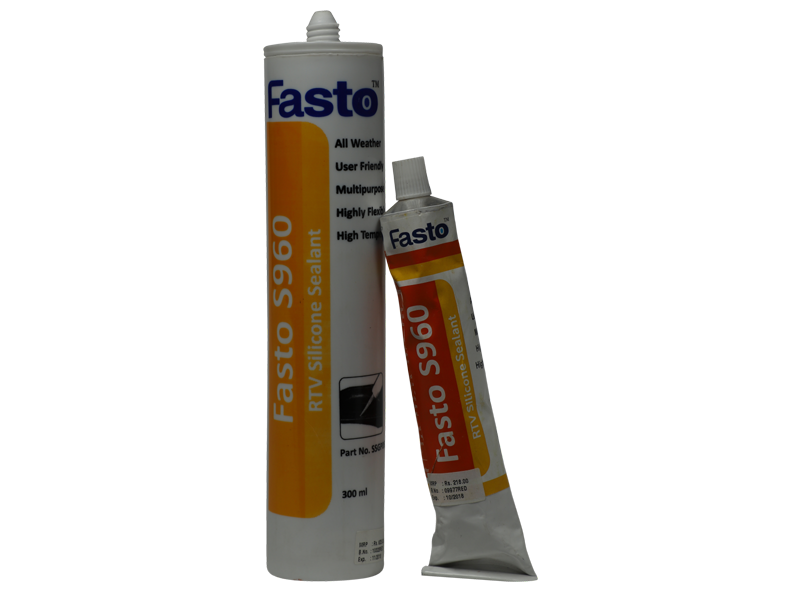

High Performance High Temperature Red
Fasto S960 is a one part, high performance, high temperature, highly flexible silicone compound. Fasto S960 is suitable for bonding and sealing gear box flanges, heater & oven ducts, exhaust manifolds, furnace ducts & flanges, HT Pipe flanges, insulation sealing, radiators, boiler joints, gaskets & o-rings.
Property |
Value |
Ultimate Tensile Strength (n/mm) |
3.3 |
Hardness Shore (n/mm) |
27 |
Handling time (mins) |
20 |
Full cure time (hrs.) |
24 |
Temp Resist (°C) |
-24 to 260 |
Pack Size |
100 ml, 300 ml, 600 ml, 20 ltr, 200 ltr |
Applications:
Agricultural Equipment Compressors Heat Exchangers Pumps

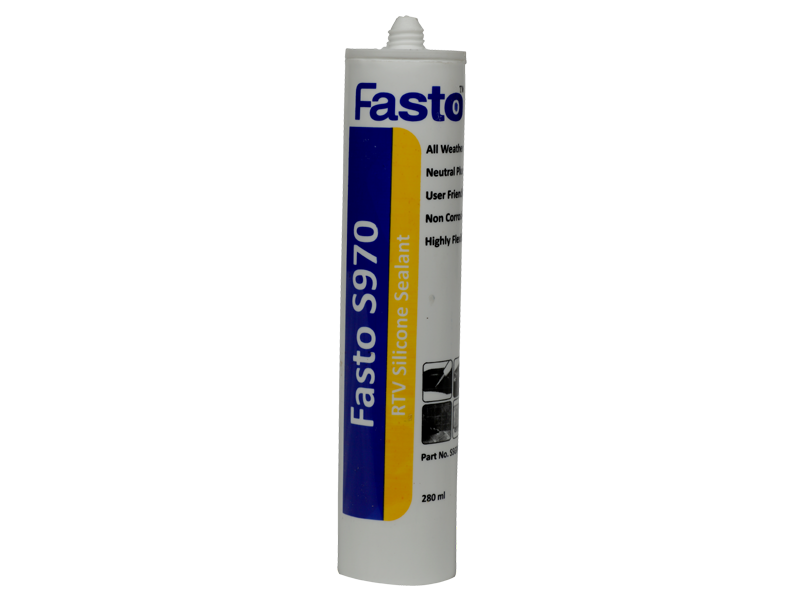

Neutral Cure Highly Flexible
Fasto S970 is a one part, all weather, highly flexible, neutral cure, non corrosive RTV Silicone sealant. Fasto S970 is suitable for bonding and sealing gear box flanges, air conditioning ducts, bus body, street lights, junction box, signing boards, solar panels and many more electrical & mechanical equipment and machines.
Property |
Value |
Ultimate Tensile Strength (n/mm) |
1.8 |
Hardness Shore (n/mm) |
24 |
Handling time (mins) |
35 |
Full cure time (hrs.) |
14 |
Temp Resist (°C) |
-24 to 175 |
Pack Size |
100 ml, 300 ml, 600 ml, 20 ltr, 200 ltr |
Applications:
Agricultural Equipment Automotive Bus Body Compressors Construction Equipment LED Pumps Transmission White Goods

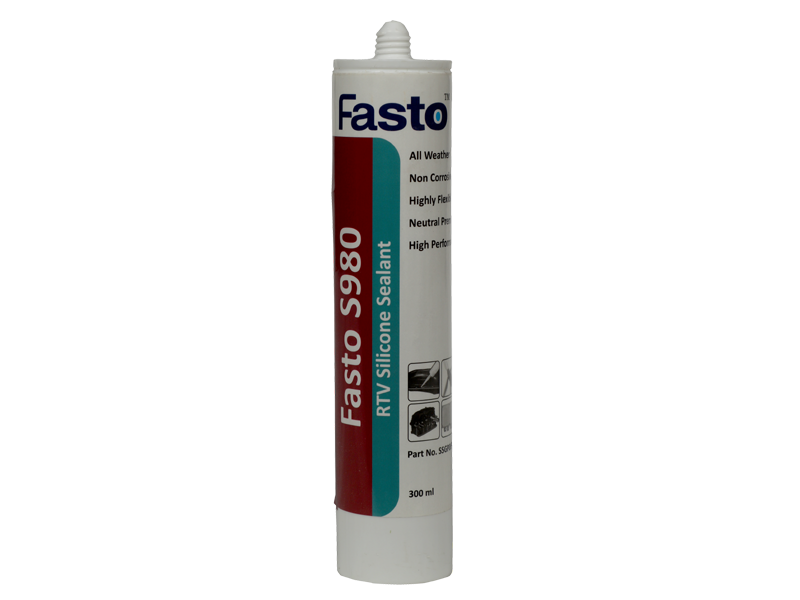

High Performance High Strength
Fasto S980 is a one part, oil tolerant, all weather, highly flexible, non corrosive, high performance RTV Silicone sealant. Fasto S980 is suitable for bonding and sealing gear box & pump flanges, air conditioning ducts & refrigeration system, oil sumps, solar panels and many more electrical & mechanical equipment and machines.
Property |
Value |
Ultimate Tensile Strength (n/mm) |
1.9 |
Hardness Shore (n/mm) |
28 |
Handling time (mins) |
20 |
Full cure time (hrs.) |
24 |
Temp Resist (°C) |
-24 to 230 |
Pack Size |
100 ml, 300 ml, 600 ml, 20 ltr, 200 ltr |
Applications:
Agricultural Equipment Automotive Bus Body Compressors Construction Equipment LED Pumps Transmission White Goods
In Fasto polymer resins are used as the principal polymer component due to their high thermal stability and resistance to a wide variety of chemicals. Polymer concrete is also composed of other aggregates and other high quality material. The aggregate must be of good quality, dry, free of dust and other debris.
• Rapid curing at ambient temperatures
• High tensile, flexural, and compressive strengths
• Good adhesion to most surfaces
• Good long-term durability with respect to freeze and thaw cycles
• Low permeability to water and aggressive solutions
• Good chemical resistance
Product |
Features |
Tack Free Time/ Full Cure Time (mins/ hrs.) |
Temperature Resistance (°C) |
Pack Size |
Chemach 90 |
Fast Curing High Comp. Strength |
30 / 24 |
-10 to 80 |
550 g |
Super Seal 889 |
High Performance Weather Sealant |
80 mins. / 7 Days |
-24 to 150 |
300 ml, 20l, 200l |
Super Seal 895 |
High Performance Structural Glazing |
80 mins. / 7 Days |
-24 to 150 |
300 ml, 20l, 200l |
Super Seal 860 |
High Performance Neutral Sealant |
35 / 24 |
-24 to 150 |
280 ml, 20l, 200l |
Super Seal 840 |
High Performance Multi Seal |
30 / 24 |
-24 to 150 |
280 ml, 20l, 200l |
Super Seal 890 |
High Performance Acrylic Sealant |
10/ 24 |
-24 to 60 |
300 ml, 20l, 200l |

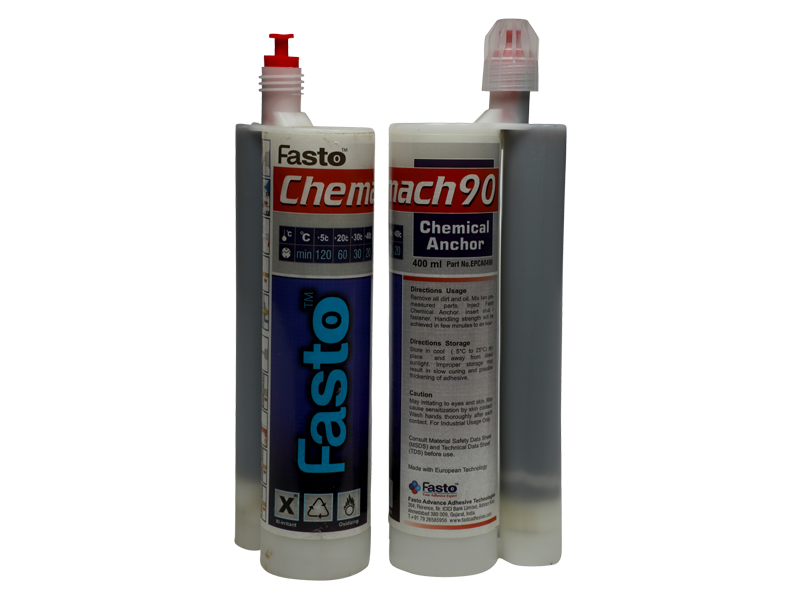

High Performance Fast Curing High Compressive Strength
Fasto is a very high strength and fast curing two part pure epoxy based chemical anchor system. It is ready to use 3:1 cartridge. Fasto CHEMACH90 is formulated for grouting, bonding and holding various construction substrates like steel, concrete and many other substrates. Fasto CHEMACH90 can be used for grouting various machines, cables trays and other equipment.
Property |
Value |
Ultimate Tensile Strength (n/mm) |
89 (Compressive Strength) |
Tack Free Time (mins.) |
30 mins |
Full Cure Time (hrs.) |
24 hrs |
Temp Resist (°C) |
10 to 80 |
Pack Size |
550 g |
Applications:
CompressorsConstruction EquipmentConstruction Equipment
High Performance Weather Sealant
SuperSeal 889 is a one-part, neutral- cure, architectural grade weatherproofing sealant. It easily extrudes in any weather and cures at ambient temperature by reaction with moisture in the air to form a durable, flexible silicone rubber seal.
Property |
Value |
Ultimate Tensile Strength (n/mm) |
1.9 |
Hardness (Shore a) |
26 |
Tack Free Time (mins) |
80 mins |
Full Cure Time (hrs.) |
7 days |
Temp Resist (°C) |
-24 to 150 |
Pack Size |
300 ml |
Applications:
Construction EquipmentDoors & Windows
High Performance Structural Glazing
SuperSeal 895 is a one part all weather, UV resistant, highly flexible, neutral cure, non corrosive, superior grade structural glazing RTV silicone sealant. Fasto S895 is suitable for bonding and sealing glass to aluminium structures, composites, IG units and many more construction grade substrates.
Property |
Value |
Ultimate Tensile Strength (n/mm) |
2.4 |
Hardness (Shore a) |
42 |
Tack Free Time (mins) |
80 mins |
Full Cure Time (hrs.) |
7 days |
Temp Resist (°C) |
-24 to 150 |
Pack Size |
300 ml |
Applications:
Construction EquipmentDoors & Windows

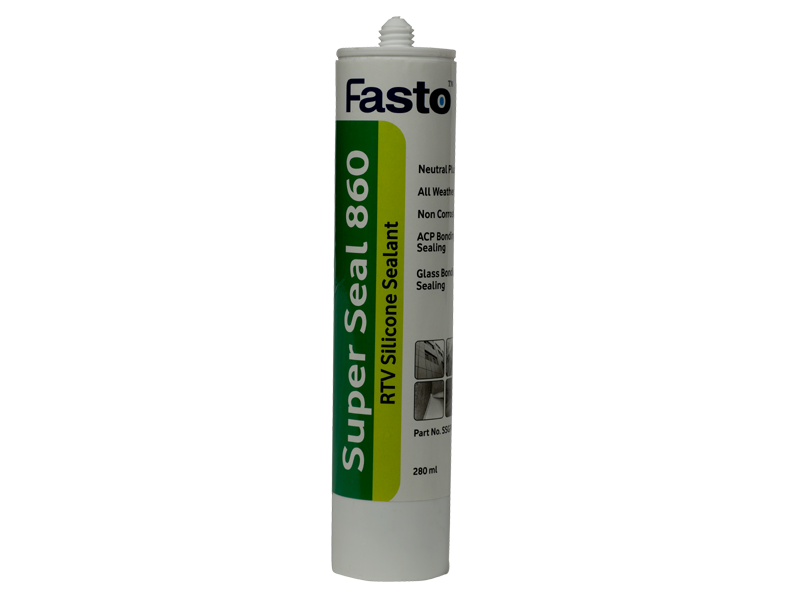

High Performance Neutral Sealant
SuperSeal 860 is a one part, all weather, highly flexible, neutral cure, non corrosive, construction grade RTV Silicone sealant. SuperSeal 860 is suitable for sealing, bonding and glazing applications. It can be used for glazing & sealing composite panels, glass, aluminium and other light applications.
Property |
Value |
Ultimate Tensile Strength (n/mm) |
2.4 |
Hardness (Shore a) |
42 |
Tack Free Time (mins) |
80 mins |
Full Cure Time (hrs.) |
7 days |
Temp Resist (°C) |
-24 to 150 |
Pack Size |
300 ml |
Applications:
Construction Equipment Doors & Windows
Structural Adhesives are ideal for applications that do not require extremely fast set times but do require high strength. The range of Structural Adhesive products offers a wide choice of solutions to meet the various requirements and conditions that apply to industrial design and construction.
• Excellent shear and tensile strength
• Superior solvent resistance including water and acetone.
• Very good gap-filling properties.
• Suitable for use on electronics or in general assembly.
Product |
Features |
Cure Time Handling/ Full (mins/ hrs.) |
Temperature Resistance (°C) |
Pack Size (ml) |
Fasto E180 |
High Performance High Strength |
4 /24 |
-10 to 150 |
9 kg, 1.8 kg |
Fasto MA15 |
High Performance Porous Surface |
20 / 24 |
-25 to 125 |
400, 50 |
Fasto MA05 |
High Performance Porous Surface |
5 / 24 |
-25 to 125 |
400, 50 |

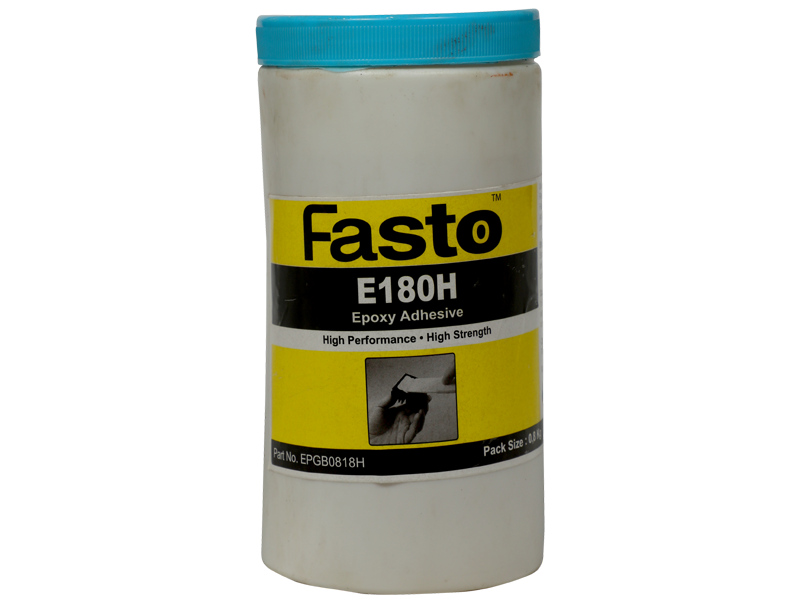

High Performance High Strength
Fasto E180 is a high performance high strength two part epoxy based adhesive. Fasto E180 is formulated for bonding, sealing and holding various substrates like steel, aluminium, brass, ceramic, concrete, wood, rubber, etc. Fasto E180 offers high performance, strong fixing with exceptionally high chemical resistance.
Property |
Value |
Tensile Strength (n/mm) |
32 |
Compressive Strength (n/mm) |
78 |
Handling time ( hrs.) |
4 |
Full cure time (hrs.) |
24 |
Temp Resist (°C) |
-10 to 150 |
Pack Size |
9 kg & 1.8 kg |
Applications:
Agricultural Equipment Construction Equipment Fire Fighters Generators Structural Bonding & Sealing

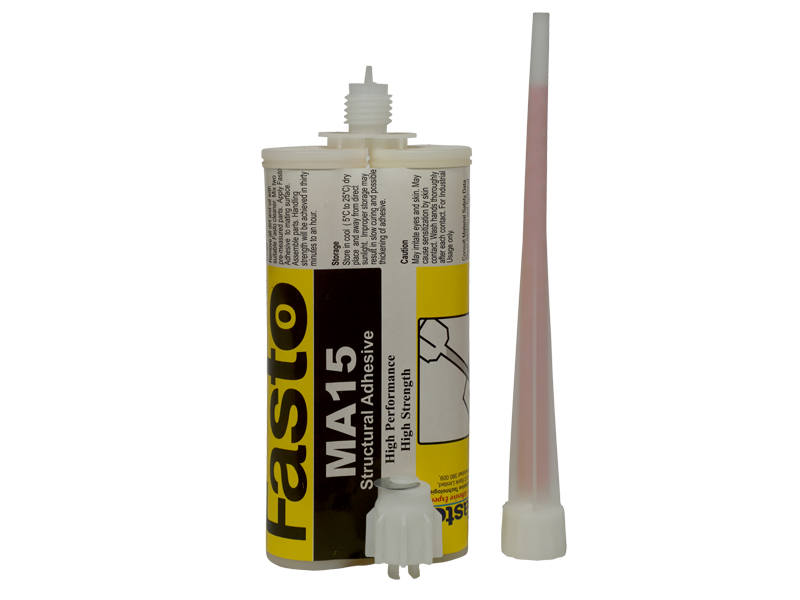

High Performance Porous Surface
Fasto MA15 is 1:1 mix ratio two component methyl methacrylate based very high strength and high performance structural adhesive. Fasto MA15 is designed to withstand higher impact load and has excellent weather resistance. It is suitable for bonding metals, magnet, plastics, FRP and many other substrates.
Property |
Value |
Tensile Strength (n/mm) |
14 |
Compressive Strength (n/mm) |
10 ( Peel Strength) |
Handling time (mins.) |
20 |
Full cure time (hrs.) |
24 |
Temp Resist (°C) |
-25 to 125 |
Pack Size |
400 ml & 50 ml |
Applications:
Automotive Compressors Construction Equipment Heat Exchangers Motors Pumps Structural Bonding & Sealing Tractors White Goods

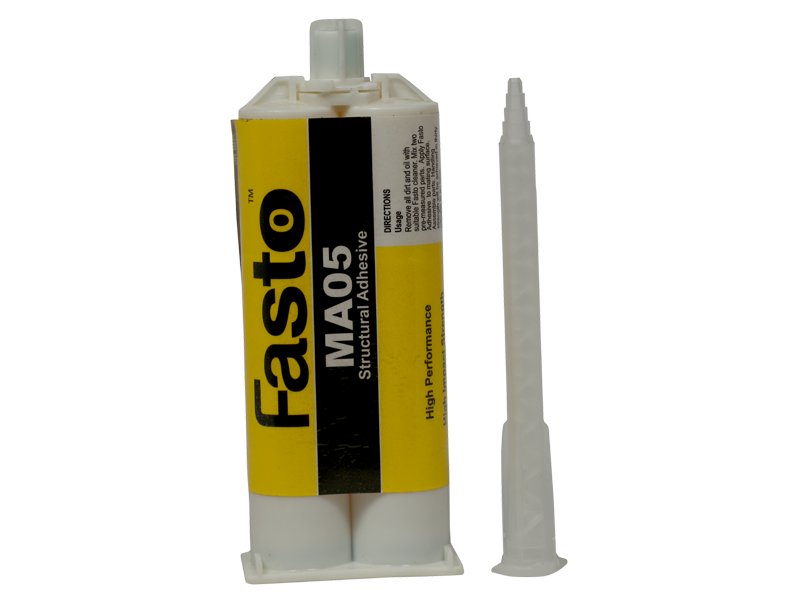

High Performance Porous Surface
Fasto MA05 is 1:1 mix ratio two component methyl methacrylate based very high strength, fast curing and high performance structural adhesive. Fasto MA15 is designed to withstand higher impact load and has excellent weather resistance. It is suitable for bonding metals, magnet, plastics, FRP and many other substrates.
Property |
Value |
Tensile Strength (n/mm) |
16 |
Compressive Strength (n/mm) |
12 ( Peel Strength) |
Handling time (mins.) |
05 |
Full cure time (hrs.) |
24 |
Temp Resist (°C) |
-25 to 125 |
Pack Size |
400 ml & 50 ml |
Applications:
Automotive Compressors Construction Equipment Heat Exchangers Motors Pumps Structural Bonding & Sealing White Goods.
Fasto Flange Sealants designed for use on rigid machined flanges with less than .015″gap. OEM approved – use where OE’s specify “anaerobic” gasket (cures in the absence of air) withstands temperatures. Fasto flange sealants are up to 300°F (149°C) and eliminates preformed, pre-cut, paper, rubber and cork gaskets.
• Single-component – easy and clean to apply
• Replace conventional gaskets – reduce inventory
• Fills all voids • No need for retorquing
• Excellent instant seal
• High resistance to solvents
• Resists high pressure when fully cured
Product |
Features |
Cure Time (Fixture/ Full Strength) (min./ hrs.) |
Temperature Resistance (°C) |
Pace Size (ml) |
Fasto A474 |
High Performance Fast Curing |
15 / 24 |
-50 to 150 |
50, 250 |
Fasto A475 |
High Performance High Viscosity |
10 / 12 |
-50 to 150 |
50, 250 |
Fasto A410 |
High Performance High Temperature |
15 / 24 |
-50 to 150 |
50, 250 & 300 |
Fasto A415 |
High Performanc Medium Strength |
10 /12 |
-50 to 175 |
50, 250 & 300 |
Fasto A418 |
High Performance High Temperature |
10 / 12 |
-50 to 175 |
50, 250 & 300 |

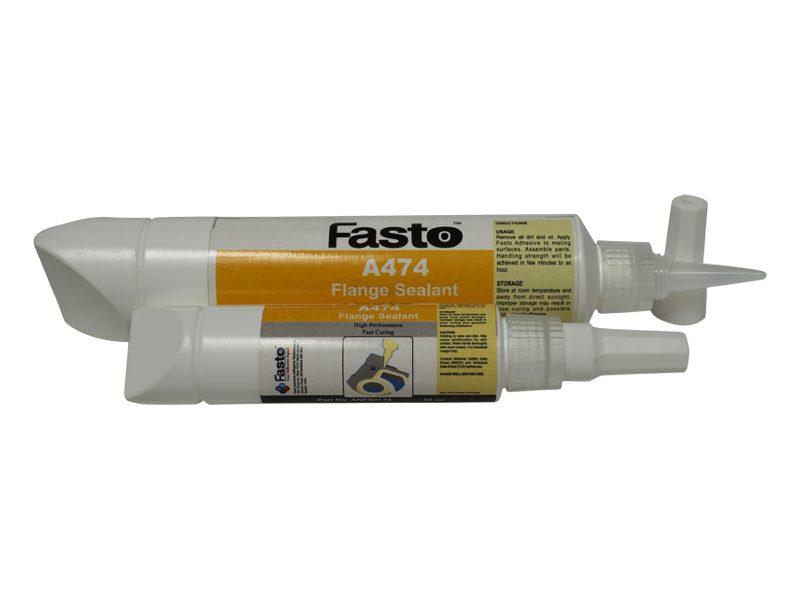

High Performance Fast Curing
Fasto A474 is recommended for sealing rigid & semi-rigid metal flanges. It is fast curing flange sealant that gives instant sealing. It can be used for sealing gearbox casings & side covers, pump housings, machinery covers, etc. It offers initial pressure resistance of 0.5 bar after 20 mins.
Property |
Value |
Gap Filling (mm) |
0.35 |
Handling time (mins) |
15 |
Full cure time (hrs.) |
24 |
Viscosity (cps) |
31000 / 105000 (thixotropic) |
Temp Resist (°C) |
-50 to 150 |
Pack Size |
50 ml & 250 ml |
Applications:
Agricultural Equipment Automotive Compressors Construction Equipment Gear Box Motors Pumps Steering Assembly Transmission
High Performance High Viscosity
Fasto A475 is recommended for sealing rigid & semi-rigid metal flanges. It is high viscosity flange sealants that gives instant sealing. It can be used for sealing gearbox casings & side covers, pump housing, machinery covers, etc. It offers initial pressure resistance of 0.5 bar after 20 mins.
Property |
Value |
Gap Filling (mm) |
0.25 |
Handling time (mins) |
10 |
Full cure time (hrs.) |
12 |
Viscosity (cps) |
60000 / 105000 (thixotropic) |
Temp Resist (°C) |
-50 to 150 |
Pack Size |
50 ml & 250 ml |
Applications:
Agricultural Equipment Automotive Compressors Construction Equipment Engines Gear Box Motors Pumps Steering Assembly Submersible Pumps Tractors Transmission

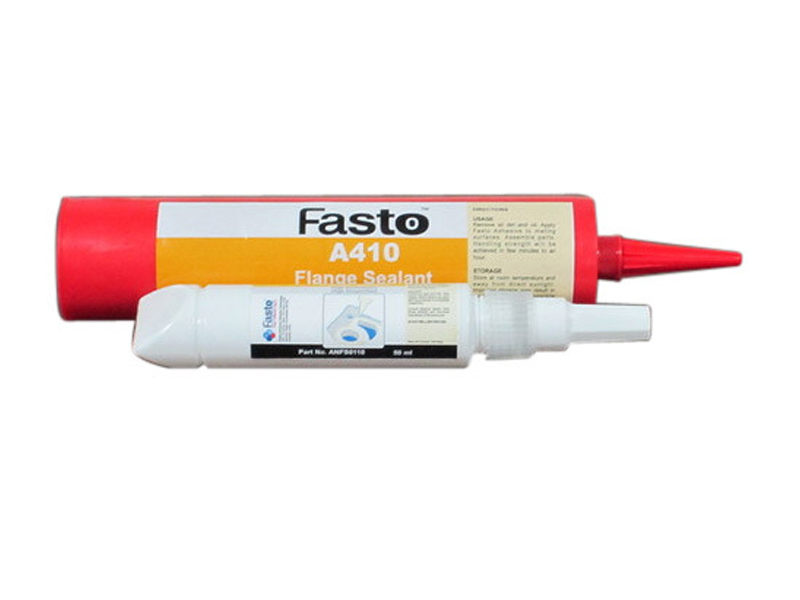

High Performance High Temperature
Fasto A410 is high temperature flange sealant for making & dressing gaskets in rigid assemblies. It permits clamp load to be maintained for leak-proof assemblies. It offers initial pressure resistance of 0.5 bar after 20 mins.
Property |
Value |
Gap Filling (mm) |
0.50 |
Handling time (mins) |
15 |
Full cure time (hrs.) |
24 |
Viscosity (cps) |
60000 / 425000 (thixotropic) |
Temp Resist (°C) |
-50 to 175 |
Pack Size |
50 ml, 250 ml & 300 ml |
Applications:
Agricultural Equipment Automotive Compressors Construction Equipment Gear Box Motors Pumps Steering Assembly Transmission

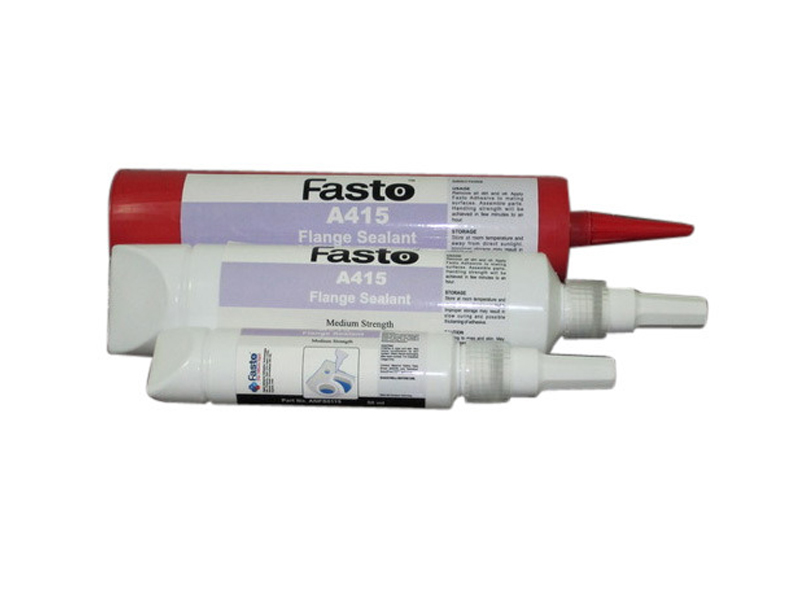

High Performance Medium Strength
Fasto A415 is medium strength and high viscosity flange sealant for making & dressing gaskets in rigid assemblies. It seals close fitting joints between rigid metal faces and flanges and will flex with minor flange movements. It offers initial pressure resistance of 0.5 bar after 20 mins.
Property |
Value |
Gap Filling (mm) |
0.25 |
Handling time (mins) |
10 |
Full cure time (hrs.) |
12 |
Viscosity (cps) |
70000 / 375000 (thixotropic) |
Temp Resist (°C) |
-50 to 175 |
Pack Size |
50 ml, 250 ml & 300 ml |
Applications:
Agricultural Equipment Automotive Compressors Construction Equipment Gear Box Motors Pumps Steering Assembly Transmission

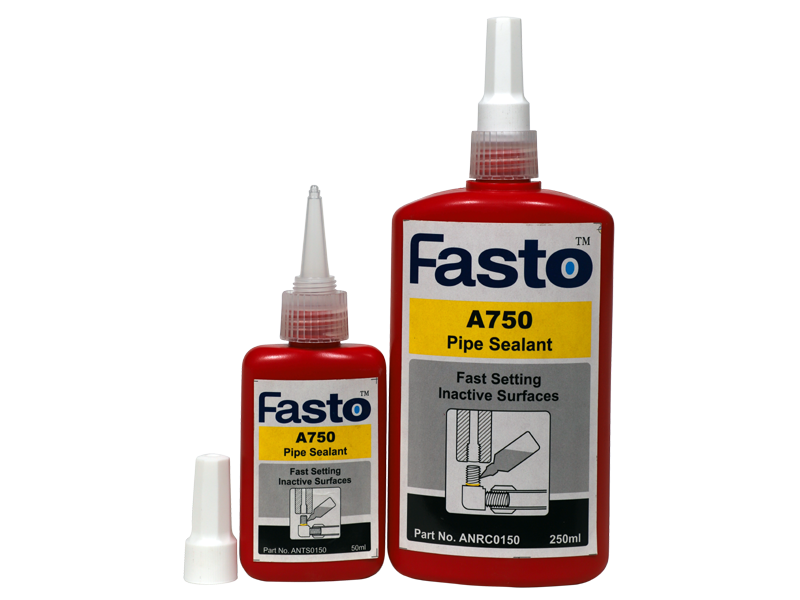

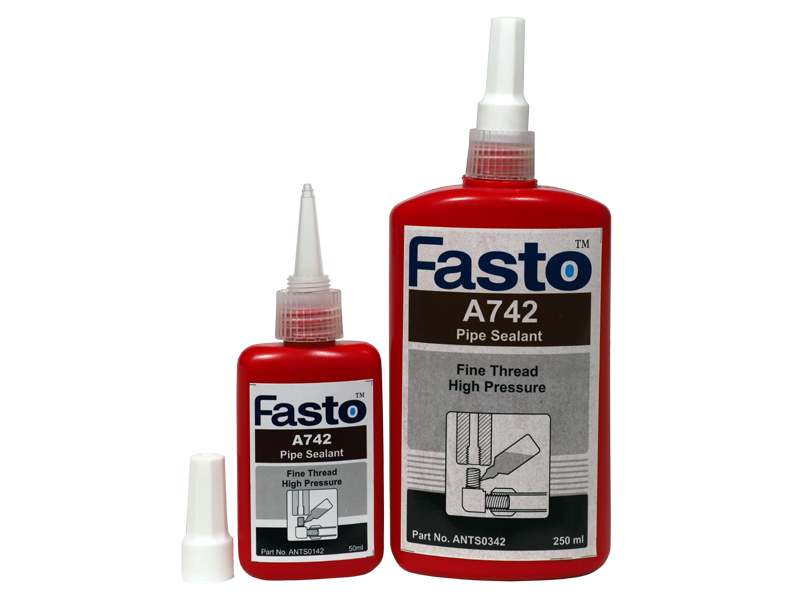

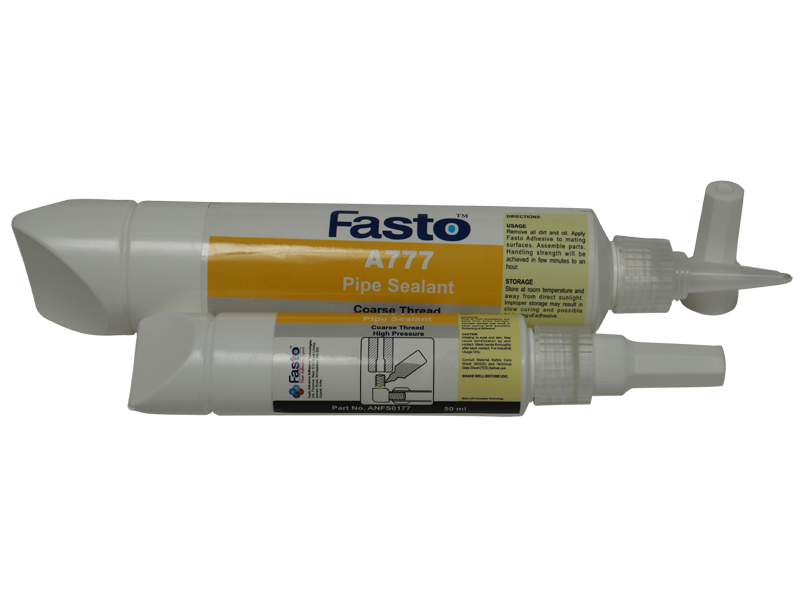

Thread Sealants are available in liquid or paste form. They prevent the leakage of gases and liquids. Designed for low and high pressure applications, they fill the space between threaded parts and provide an instant low pressure seal. When fully cured, they seal to the burst strength of most piping systems.
• Single-component – clean and easy to apply
• Does not creep, shrink or block systems
• Can be used on any size of pipe fitting
• Replaces all types of tape and hemp/paste sealants
• The seal resists vibration and shock loads
• Grades with several approvals
Product |
Features |
Cure Time (Fixture/ Full Strength) (min/hrs.) |
Temperature Resistance (°C) |
Pack Size (ml) |
Fasto A742 |
High Performance High Pressue |
10 / 12 |
-50 to 150 |
50, 250 |
Fasto A750 |
High Performance Primerless |
10 / 10 |
-50 to 150 |
50, 250 |
Fasto A754 |
High Performance Refrigerant Sealant |
10 / 10 |
-60 to 150 |
50, 250 |
Fasto A777 |
High Pressure High Viscosity |
15 / 24 |
-50 to 150 |
50, 250 |
Fasto A778 |
Fast Curing Primerless |
10 / 10 |
-50 to 200 |
50, 250 |
Fasto A765 |
Low Strength PTFE Based |
100 / 24 |
-50 to 150 |
50, 250 |
Fasto A767 |
Primerless PTFE Based |
60 / 24 |
-50 to 203 |
50, 250 |
High Performance High Pressure
Fasto A742 is recommended for sealing fine threads of hydraulic & pneumatic connections. It seals up to burst pressure of pipe. Fasto A742 offers excellent chemical resistance also.
Pipe Thread Size (inch) |
Up to 3 / 4 |
Handling time (mins.) |
10 |
Full cure time (hrs.) |
12 |
Viscosity (cps) |
700 |
Temp Resist (°C) |
-50 to 150 |
Pack Size |
50 ml, 250 ml |
Applications:
Agricultural Equipment Automotive Compressors Construction Equipment Gear Box Generators Harvesters Motors Pumps Rotavators Steering Assembly Tractors Transmission
High Performance Primerless High Pressure Medium Viscosity
Fasto A750 is medium strength, high viscosity and very fast curing threadsealant. It is equally suitable for sealing active & passive substrates. It can be used for sealing threaded assemblies of chillers, compressors, fire fighting equipment, pumps, power packs, etc.
Property |
Value |
Pipe Thread Size (inch) |
Up to 1 1/2 |
Handling time (mins.) |
10 |
Full cure time (hrs.) |
10 |
Viscosity (cps) |
5000 |
Temp Resist (°C) |
-50 to 150 |
Pack Size |
50 ml 250 ml |
Applications:
Agricultural Equipment Automotive Compressors Construction Equipment Gear Box Motors Pumps Steering Assembly Transmission
High Performance Refrigerant Sealant
Fasto A754 is a single component, high strength, refrigerant grade flexible anaerobic pipe sealant. Pipe joints made with Fasto A754 should be tightened to the specific torque within a maximum of 4-5 minutes from initial assembly.
Property |
Value |
Pipe Thread Size (inch) |
Up to 3 |
Handling time (mins.) |
10 |
Full cure time (hrs.) |
10 |
Viscosity (cps) |
2100 |
Temp Resist (°C) |
-60 to 150 |
Pack Size |
50 ml, 250 ml |
Applications:
Agricultural Equipment Automotive Compressors Construction Equipment Gear Box Motors Pumps Steering Assembly Transmission
High Pressure High Viscosity
Fasto A777 is recommended to lock and seal medium to coarse straight and tapered pipe threads on pipes Ø15 mm to Ø80 mm. It gives an almost instant low pressure seal (up to 2 bar after 20 mins.) and when fully cured seals up to the bursting pressure of the pipe (10,000 psi).
Property |
Value |
Pipe Thread Size (inch) |
Up to 3 |
Handling time (mins.) |
15 |
Full cure time (hrs.) |
24 |
Viscosity (cps) |
48000 / 15000 (thixotropic) |
Temp Resist (°C) |
-50 to 150 |
Pack Size |
50 ml, 250 ml |
Applications:
Agricultural Equipment Automotive Compressors Construction Equipment Gear Box Motors Pumps Steering Assembly Transmission
Fasto CA11
Technologies: Instant Adhesives
Multipurpose Low Viscosity
Fasto CA11 is a low viscosity modified Ethyl Cyanoacrylate adhesive. Fasto CA11 is suitable for bonding a very wide range of materials, including some porous ones, where very fast cure speed is required.
Applications:
Automotive FRP LED Plastic & Rubber Part Assembly Pumps Tractors White Goods Wind Mill.
